SPACESMART Series Hybrid Field Test System
Applications
General Antenna Testing, Metasurface Testing, Phase Array Diagnosis, Radar Testing, etc.
Capabilities
Hybrid Field Test System supports Planar Near-Field, Cylindrical Near-Field and Far-Field Testing.
The system test function depends on the specific requirements of the user. Our test system supports the customization of microwave anechoic chamber dimension and operating frequency range.
·Support a variety of passive and active antenna test requirements.
·Fast testing near-field patterns of amplitude and phase, far-field patterns and holographic patterns.
·Easy to upgrade for cylindrical or spherical near-field measurements.
·Support data export files: antenna gain, 2D/3D radiation patterns, beam pointing and cross polarization.
Specifications
Frequency: 1GHz ~ 110GHz (up to 500GHz upon request)
Drive System: Precision Stepper Motor; Servo Motor; Rack and Pinion
Scan Aera: 0.3m×0.3m ~1.5m×1.5m (larger scan area can be customized)
Planarity: 0.05mm ~ 0.125mm RMS (cylindrical near-field available)
Position Repeatability: 0.05mm RMS
Scan Speed (X-Y Axis): X (0.2 ~ 1m/s); Y (0.2 ~ 1m/s)
RF Cables: High Performance Stable Amplitude and Phase Cables (up to 110GHz)
Probe: Standard Rectangular Waveguide Probe (up to 110GHz)
Probe Mount: Custom Bracket - Allows "V" and "H" Polarization
Supply Power: 100 ~ 240V AC Switchable; 50 / 60Hz, 500 Watts
Supported RF Instrument: Keysight, Rohde & Schwarz, Anritsu, Ceyear, etc.
System Configuration
·Customized Microwave Anechoic Chamber
·X-Y Stepper / Servo Motor Driven Scanner
·Motor System and Controller Kit
·PC Workstation
·Antenna Measurement Software
·Installation Tool Kits
·Optional Components: LNA, PA, RF Cables
·Test Instruments (Vector Network Analyzer, Signal Generator / Spectrum Analyzer)
·Probes
·System Documentation and Operation Manual
y
1.SPACESMART Series Hybrid Field Test System
Software System
·Near-Field Test System
Export 2D/3D radiation patterns.
·Far-Field Test System
Fast 2D radiation pattern export.
2.Field-Mix Test System
3.Field-Basic Test System
4.Field-Lite Test System
5.Phased Array Test System
6.Field-THz Test System
Show More

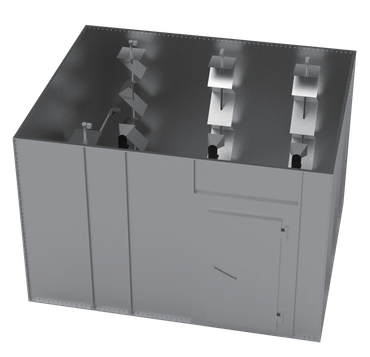

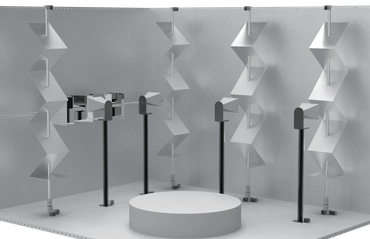

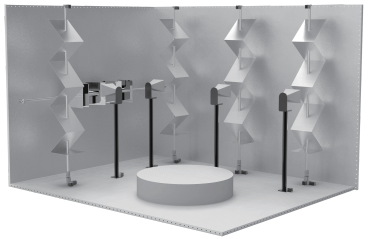

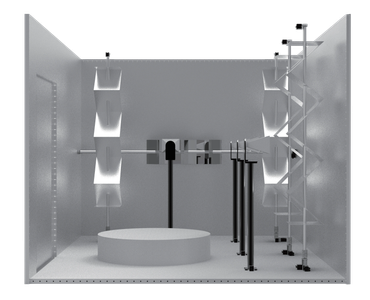

SPACESMART Series Spherical Near-Field Test System
Applications
General Antenna Testing, Mobile Terminal Antenna, Satellite Antenna, etc.
Capabilities
Spherical Near-Field Test System has a variety of functions depending on the users' specific requirements. This system supports the customization of microwave anechoic chamber dimension, operating frequency range and test specifications.
·Configured with a single/dual-probe rocker arm and a DUT rotating platform.
·Support a variety of passive and active antenna test specifications.
·Fast testing near-field pattens of amplitude and phase, far-field pattens and holographic patterns.
·Support data export files: antenna gain, beam pointing, 3D radiation pattern, cross polarization, axial ratio and efficiency.
SPACESMART Series Spherical Near-Field Test System
Optional Configuration
Specifications
Crescent Test System Frequency: 600MHz ~ 8GHz, 8GHz ~ 18GHz
Star Test System Frequency: 600MHz ~ 67GHz (up to 110GHz upon request)
Drive System: Precision Stepper Motor; Servo Motor
Max. Size of DUT: 30cm × 30cm, 40cm × 40cm, 60cm × 60cm (customizable)
Max. Weight of DUT: 30kg with Styrofoam Mast (customizable)
RF Cables: High Performance Stable Amplitude and Phase Cable (up to 110GHz upon request)
Supply Power: 100 ~ 240V AC Switchable; 50 / 60Hz, 500 Watts
Supporte
- Single-Probe Measurement System
2. Dual-Probe Measurement System
3. Multi-Probe Measurement System
SPACESMART Series Compact Antenna Test Range System (CATR)
Applications
In terms of applications, the setup of LAMBDA CATR has a variety of applications including antenna characterization, automotive radar, interference tests, Radar Cross Section and advanced radiation test, provide a larger DUT quiet-zone with fast far-field measurement in a compact room.
Product Features
·CATR-based Over-the-Air (OTA) test system
·Large quiet zone (QZ) accommodates large devices (QZ: 0.3-2m, larger sizes customizable)
·Optional frequency range (8GHz-110 GHz, customizable)
·High-speed 3D positioner system
·High shielding effectiveness (Typ. > 90 dB)
·Suitable for ETSI/FCC standards, including OTA, angle calibration.
SPACESMART Series Reverberation Chamber
Applications
Primarily for testing spurious radiation, TRP, TIS, etc., of large wireless products like base stations, smart appliances, industri-al robots. Suitable for R&D, production, inspection, and certification stages.
Product Features
·Flexible system configuration to meet various standard requirements
·Efficient test software for reverberation chamber calibration and testing needs
·Advantages: small footprint, high efficiency, high sensitivity, wide dynamic range, broad frequency band
·Optional frequency range (0.4GHz~18 GHz, customizable)
Optional ConfigurationSoftware System·Compact Range Test Software
SPACESMART Series Custom Antenna Test Positioners
Applications
Custom antenna test positioner setups have various applications, e.g., measurement system upgrades, test range conver-sion, indoor/outdoor test control.
The equipment is mobile, compact, fast, precise, and automated; simulates various antenna attitudes like roll, pitch, yaw.
Customized and configured per test requirements to meet diverse testing needs.
Product Features
·Customized based on requirements analysis
·Easy integration with existing equipment for rapid testing
·Flexible, not limited by site constraints
·Includes antenna fixtures, plug-and-play
·Configured with software
SPACESMART Series RF Microwave Teaching Platform
Applications
Teaching Function: Antenna test principles, antenna test system instruction.
Lab Function: VNA calibration/use lab, antenna (far-field) tech lab, system setup lab, VSWR test lab, input impedance test lab,radiation pattern test lab, gain test lab, polarization test lab, etc.
Product Features
·Integration of antenna test technology and teaching labs; intuitive, clear, enhances learning interest.
·Provides small antenna samples, configured with small positioner, for real-time understanding of antenna signal trans-mission.
·Complete kit design, out-of-the-box, easy for labs and teaching.
·Integrated software interface, simple and easy to understand.
